UG-Medium 3500 230V Underground Motor-Able Automation
230V electromechanical moto reducer for underground mounting. For swing gates with leaves up to 3.5 m
QR18000.00QR16000.00

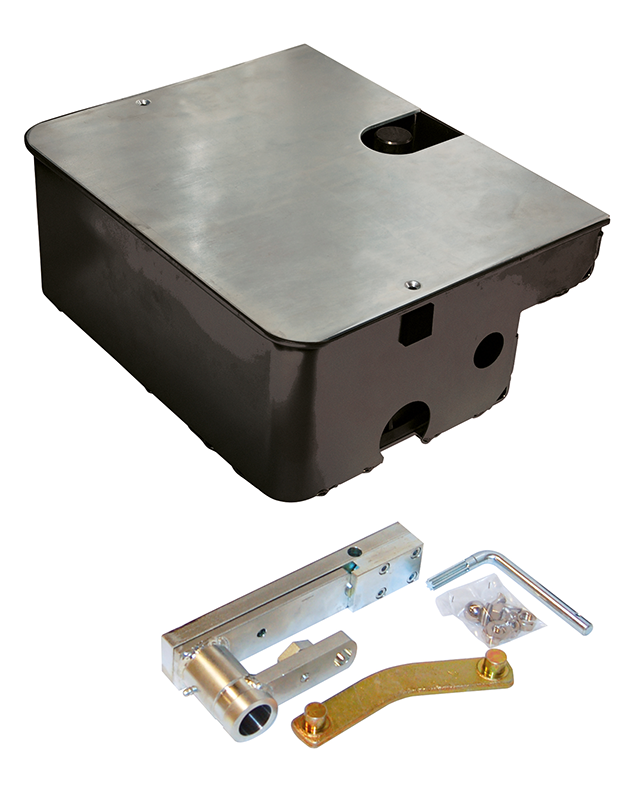

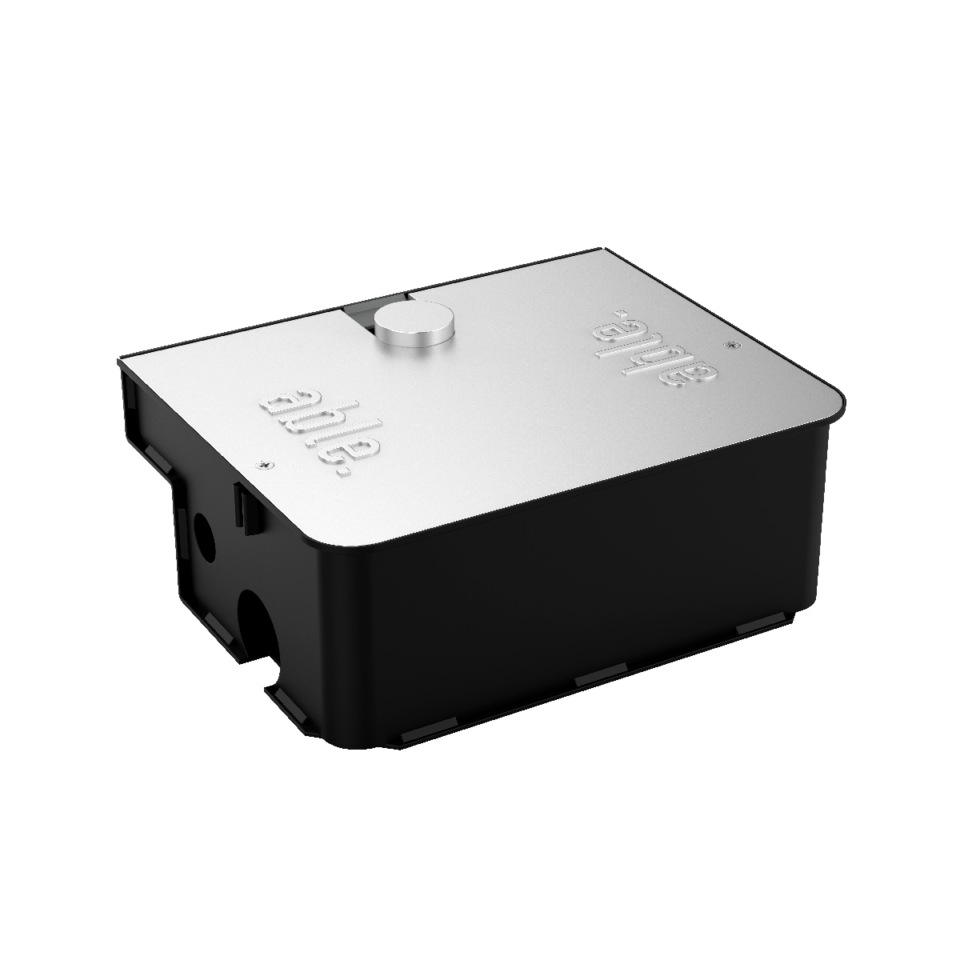

“ UG MEDIUM 3500 230” is the 230 V-version underground electromechanical gear motor for swing gates up to 3.5 m leaf length.
Key specs: supply 230 Vac, full load power ~550 W, current ~2.4 A, max torque ~320 Nm, rated for leaves up to 800 kg.

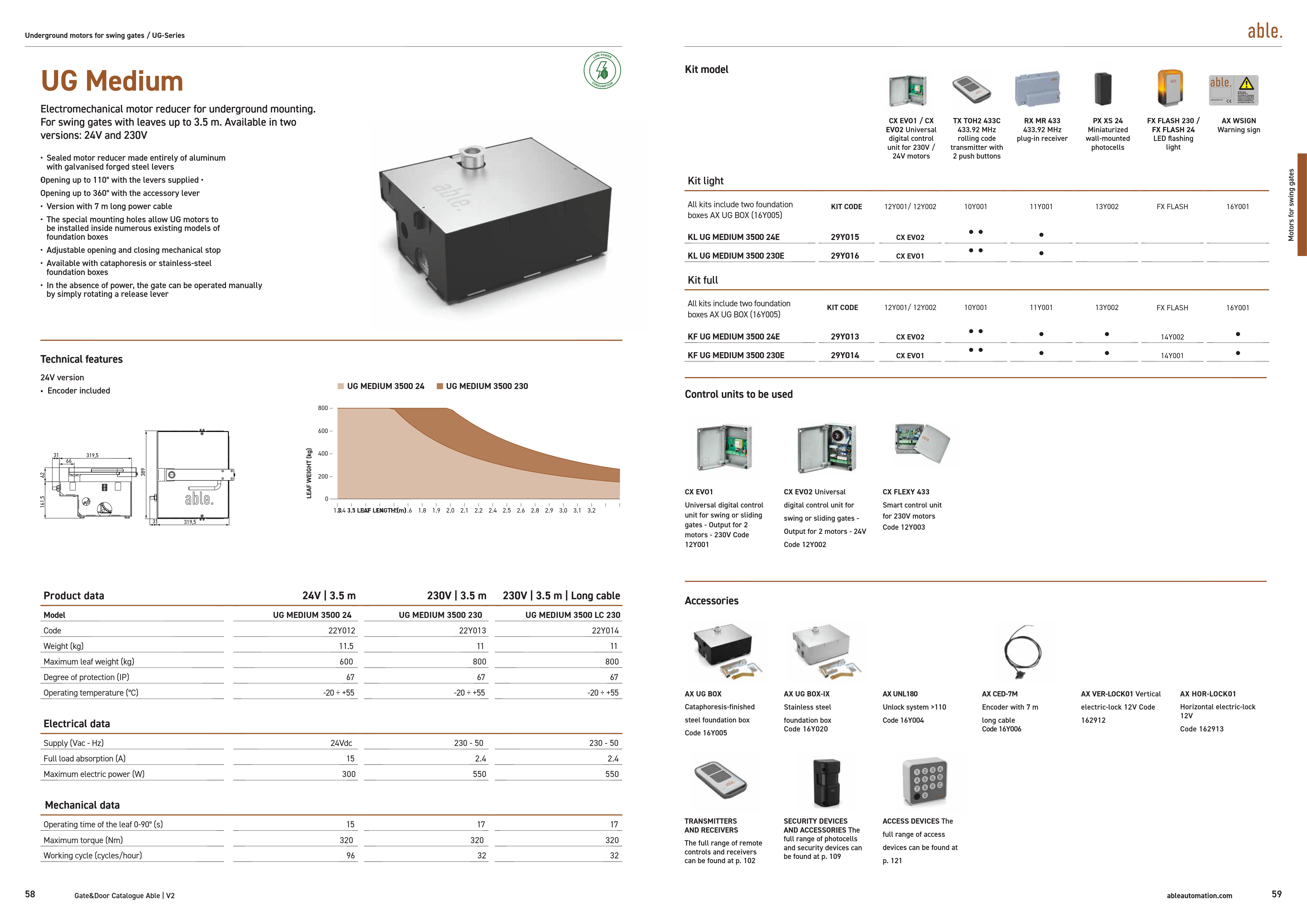

There are kit codes defined: e.g., the catalogue shows a “KL UG MEDIUM 3500 230E” kit (code 29Y016) which appears to include motors + accessories.
Main Features:
Sealed motor & reducer.
Opening up to 110° using standard levers; with accessory lever, up to 360°.
Adjustable mechanical opening/closing stops.
Special mounting holes to fit into many existing foundation boxes.
Technical Data (for the 230 V version) :
Supply: 230 Vac – 50 Hz.
Full load current: 2.4 A.
Max power: ~550 W.
Max torque: 320 Nm.
Duty cycle: up to 32 cycles/hour.
Operating time for 0-90°: ~17 seconds.
Protection rating: IP67.
Operating temperature: –20° C to +55° C.
Weight: approx. 11 kg.
Max gate leaf weight: up to 800 kg (for this variant) with recommended leaf length up to 3.5 m.
Dimensions (approx): 328 × 398 × 224 mm.
Kits: On the site, they list “Kit Light” and “Kit Full” variants for this model. For example:
Kit Light SKU 29Y016: 1 × UG MEDIUM 3500 230 + 1 × Controller CX EVO1 + 2 × Transmitters.
Kit Full SKU 29Y014: same motor + Controller + Transmitters + Receivers + Photocells + Flashing light + Warning sign.
